Single station horizontal rotary cold hot box core shooters

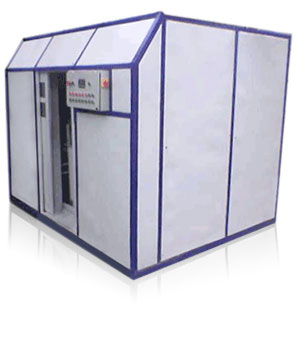

Single Station Horizontal and Vertical Cold Box / Hot Box Core Shooters

This flagship product of Selva Lakshmi Industries can shoot volumes in 5 to 100 kgs. The average machine time, excluding gassing, shoot and exhaust is from 25 seconds onwards.

There is provision for hydraulic and pneumatic clamping and the core boxes can be parted either vertically or horizontally. With a PLC managing the operations, the unit works with an input of 5 kW power.

VIEW VIDEO

SINGLE STATION COLD BOX CORESHOOTER (VERTICAL PARTING) :

MODEL SLI 3C SLI 5C SLI 10C SLI 25C
CORE BOX SIZE (L*W*H) mm 300x150x250 400x200x300 500x300x400 650x400x500
CORE WEIGHT (Kgs) 3 5 10 25
MACHINE SIZE (L*W*H)mtrs 1.5x1.5x1.5 3x2x2 2.5x2x2.5 3x2.5x3
MACHINE WEIGHT (Tons) 2.5 3 3.5 4
SHOOTING HEAD AREA SIZE (L*W) mm 200x100 300x100 400x125 600x150
VERTICAL CLAMPING STROKE (mm) 80 100 150 175
HORIZONTAL CAMPING STROKE BOTH SIDE (mm) 150 200 300 400
CLAMPING HYD HYD HYD HYD
CYCLE TIME Per/core(Without gas,purge, Shooting & Sand feeding (Sec) 35 50 70 80
SAND FEEDING AUTO AUTO AUTO AUTO
AIR CONSUMPTION Per/core (Cfm) 30 40 50 60

ELECTRICAL DETAILS :

MODEL SLI 3C SLI 5C SLI 10C SLI 25C
INPUT POWER 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz
HYDRAULIC MOTOR (Hp) 2 3 5 7.5
VIBRATOR MOTOR (Hp/rpm) 0.25/2800 0.25/2800 0.5/2800 1/2800
BLOWER (Hp/rpm) 0.5/2800 0.5/2800 1/2800 1/2800
HEATER (KW) 1 1 2 2

SINGLE STATION HOT BOX CORESHOOTER (VERTICAL PARTING) :

MODEL SLI 3C SLI 5C SLI 10C SLI 25C
CORE BOX SIZE (L*W*H) mm 300x150x250 400x200x300 500x300x400 650x400x500
CORE WEIGHT (Kgs) 3 5 10 25
MACHINE SIZE (L*W*H)mtrs 1.5x1.5x1.5 3x2x2 2.5x2x2.5 3x2.5x3
MACHINE WEIGHT (Tons) 2.5 3 3.5 4
SHOOTING HEAD AREA SIZE (L*W) mm 200x100 300x100 400x125 600x150
VERTICAL CLAMPING STROKE (mm) 50 50 50 50
HORIZONTAL CAMPING STROKE single side(mm) 300 400 500 600
CLAMPING HYD HYD HYD HYD
CYCLE TIME Per/core(Without curing (Sec) 50 50 50 50
SAND FEEDING AUTO AUTO AUTO AUTO
AIR CONSUMPTION Per/core (Cfm) 40 40 50 60

ELECTRICAL DETAILS :

MODEL SLI 3C SLI 5C SLI 10C SLI 25C
INPUT POWER 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz
HYDRAULIC MOTOR (Hp) 2 3 5 7.5
VIBRATOR MOTOR (Hp/rpm) 0.25/2800 0.25/2800 0.25/2800 0.25/2800
HEATER (KW) 6-8 8-10 10-12 2-14

Products

CoreShooter

Three Station Horizontal Rotary Cold / Hot Box
Core Shooters

Core Shooter

Single Station Horizontal and Vertical Cold / Hot Box
Core Shooters

Core Sand Mixer Manual Operation

Core Sand Mixers
Manual Operation

Core Sand Mixer Automatic

Core Sand Mixers
Automatic Operation

OUR STRENGTH

  • QUALITY OF MACHINE
  • EXCELLENT DESIGN
  • INHOUSE MANUFACTURING
  • SATISFIED CUSTOMERS
  • LEAD TIME FOR DELIVERY COMMISSIONING

SPECIAL FEATURES

  • HIGH PRODUCTIVITY WITH GOOD STRENGTH.
  • ALL FUNCTION IS MANAGED BY A PLC.
  • MINIMUM OPERATING NOISE  (<80db).
  • STURDY & COMPACT DESIGN.
  • FULLY ENCLOSED SYSTEM.
  • WATER COOLED HEAD FOR SHELL CORE SHOOTERS.
  • AMINE GAS GENERATOR WITH DOSING PUMP
