3 station horizontal rotary cold hot box core shooters

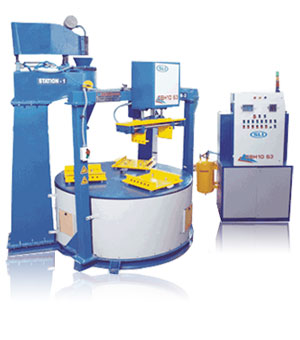

Three Station Horizontal
Rotary Cold / Hot Box Core Shooters

These Core Shooters can shoot in volumes of 5 to 20 kgs. The average machine cycle time is from 10 second onwards without gassing, shoot and exhaust. The clamping can be done by either hydraulic or pneumatic method.

The opening, shooting and gassing are simultaneously done on three core boxes. The core boxes can be parted horizontally. While the unit requires a power input of 3.7 kW, the entire functions are managed by a Programmable Logic Controller.

VIEW VIDEO

ROTARY 3 STATION COLD BOX CORESHOOTER (HORIZONTAL) :


MODEL SLI 3S3C SLI3S5C SLIS310C SLI3S 25C
CORE BOX SIZE (L*W*H) mm 200x200x100 350x350x125 450x450x150 500x500x150
TABLE DIA (mm) 700 900 1100 1300
CORE WEIGHT (Kgs) 3 5 10 25
MACHINE SIZE (L*W*H) 1.5x1.5x2 1.5x1.5x2 2x2x2.5 2.5x2.5x2.5
MACHINE WEIGHT (Tons) 2.5 2.5 3 4
SHOOTING HEAD AREA SIZE (L*W) mm 100x100 100x100 125x125 150x150
VERTICAL CLAMPING STROKE (mm) 100 100 100 100
SHOOTING HEAD & GAS HEAD HIGHT ADJUSTMENT (mm) 200 200 200 200
CLAMPING PNU PNU HYD HYD
CLAMP UNIT STROKE FOR CORE REMOVEING (mm) 300 300 400 500
CYCLE TIME Per/core(Without gas,purge, Shooting,Sand feeding & Core removing) (Sec) 15 20 40 60
SAND FEEDING HOPPER TO SAND MAG AUTO AUTO AUTO AUTO
AIR CONSUMPTION Per/core (Cfm) 10 10 15 20

ELECTRICAL DETAILS :

MODEL SLI 3S3C SLI3S5C SLIS310C SLI3S 25C
INPUT POWER 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz
HYDRAULIC MOTOR (Hp) 2 3 5 7.5
VIBRATOR MOTOR (Hp/rpm) 0.25/2800 0.25/2800 0.5/2800 1/2800
BLOWER (Hp/rpm) 0.5/2800 0.5/2800 1/2800 1/2800
HEATER (KW) 1 1 2 2

ROTARY 3 STATION HOTBOX CORE SHOOTER (HORIZONTAL) :

MODEL SLI 3S3C SLI3S5C SLIS310C SLI3S 25C
CORE BOX SIZE (L*W*H) mm 200x200x100 350x350x125 450x450x150 500x500x150
TABLE DIA (mm) 700 900 1100 1300
CORE WEIGHT (Kgs) 3 5 10 25
MACHINE SIZE (L*W*H) 1.5x1.5x2 1.5x1.5x2 2x2x2.5 2.5x2.5x2.5
MACHINE WEIGHT (Tons) 2.5 2.5 3 4
SHOOTING HEAD AREA SIZE (L*W) mm 100x100 100x100 125x125 150x150
VERTICAL CLAMPING STROKE (mm) 100 100 100 100
SHOOTING HEAD & GAS HEAD HIGHT ADJUSTMENT (mm) 200 200 200 200
CLAMPING PNU PNU HYD HYD
CLAMP UNIT STROKE FOR CORE REMOVEING (mm) 300 300 400 500
CYCLE TIME Per/core(Without gas,purge, Shooting,Sand feeding & Core removing) (Sec) 15 20 40 60
SAND FEEDING HOPPER TO SAND MAG AUTO AUTO AUTO AUTO
AIR CONSUMPTION Per/core (Cfm) 10 10 15 20

ELECTRICAL DETAILS :

MODEL SLI 3S3C SLI3S5C SLIS310C SLI3S 25C
INPUT POWER 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz 3Phase 415/50Hz
HYDRAULIC MOTOR (Hp) 2 3 5 7.5
HEATER (KW) 10-12 10-14 14-18 20-24

Products

CoreShooter

Three Station Horizontal Rotary Cold / Hot Box
Core Shooters

Core Shooter

Single Station Horizontal and Vertical Cold / Hot Box
Core Shooters

Core Sand Mixer Manual Operation

Core Sand Mixers
Manual Operation

Core Sand Mixer Automatic

Core Sand Mixers
Automatic Operation

OUR STRENGTH

  • QUALITY OF MACHINE
  • EXCELLENT DESIGN
  • INHOUSE MANUFACTURING
  • SATISFIED CUSTOMERS
  • LEAD TIME FOR DELIVERY COMMISSIONING

SPECIAL FEATURES

  • HIGH PRODUCTIVITY WITH GOOD STRENGTH.
  • ALL FUNCTION IS MANAGED BY A PLC.
  • MINIMUM OPERATING NOISE  (<80db).
  • STURDY & COMPACT DESIGN.
  • FULLY ENCLOSED SYSTEM.
  • WATER COOLED HEAD FOR SHELL CORE SHOOTERS.
  • AMINE GAS GENERATOR WITH DOSING PUMP
